Use the Re-Visualize Sidebar

The Re-Visualize sidebar (formerly Visual Style sidebar) lets you quickly change the type of visual displayed in a dashboard visual or when you are editing a visual in the Visual Gallery. Controls for changing the type of a visual are provided using the interactivity sidebar. See Control How Users Interact With a Visual.

Note: When you re-visualize a visual, its published and subscribed links are removed. See Control How Cross-Visual Filters Interact in a Dashboard.

Note: A list filter visual cannot be converted to a different type. Likewise, other visual types cannot be converted to the list filter visual type.

Access the Re-Visualize sidebar for a visual

1. Select the visual in the Visual Gallery or on a dashboard.

2. If you selected the visual on a dashboard, select Settings on the visual drop-down menu to access the sidebar menu for the visual.

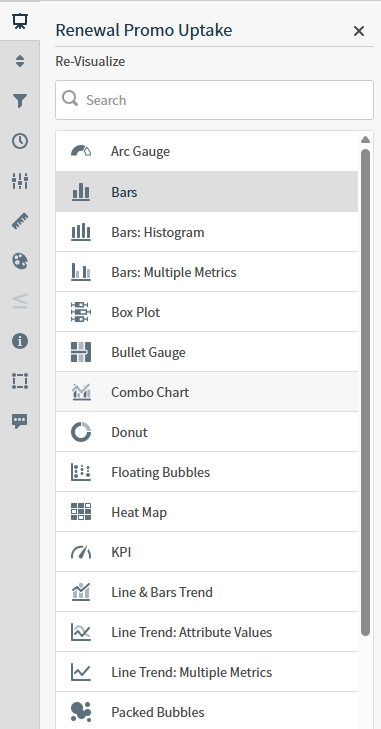

3. Select the re-visualize option () on the sidebar menu for the visual. The Re-Visualize sidebar opens.



4. Select a visual option from the list.
