Export Visuals

Export your visuals in a variety of formats, as an image or data you can share with others. To export visuals for import into another instance of your software, see Export Visual Gallery Visuals.

Note: Exports do not support special characters. If names associated with your visual, such as visual name, display name, or data source name contain special characters, update the name before export.

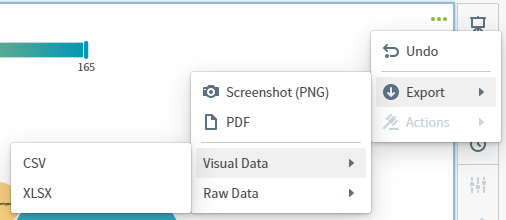

You can export your data from your visuals in several formats:

• Screenshot (PNG) - an image

• PDF - an image

• Visual Data

  • CSV - Comma separated values file

  • XLSX - Excel compatible file

• Raw Data

  • CSV - Comma separated values file

  • XLSX - Excel compatible file



Note: Grouped table data can not be exported as raw or aggregate visual data.

Note: The number of records included is limited by the setting of the zoomdata.export.data.max.rows property in the zoomdata.properties file. See Configuration Property Files.

Export a Visual as XLSX With Formatting

Table visuals can export to Excel (XLSX) files with formatting and conditional formatting when the report service is enabled.

1. Select Export from the visual drop-down menu. Select the export option XLSX With Formatting.

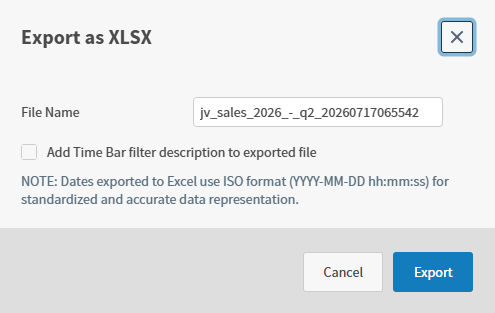

2. The Export as XLSX dialog opens.



3. Accept or change the file name.

4. Select Export. Logi Composer prepares an Excel (XLSX) file downloaded by your browser.

Control whether a visual can be exported in your embedded Logi Composer environment using the interactivity sidebar. See Control How Users Interact With a Visual.

For more information, see the following articles:

• Export Visual Gallery Visuals

• Export a Visual as an Image

• Export Visual Data in CSV or XLSX Format

• Export Raw Data in CSV or XLSX Format
